Dose Calibrator List


Select Equipment from the Main Menu bar.  Select Dose Calibrator from the Dose Calibrators menu.

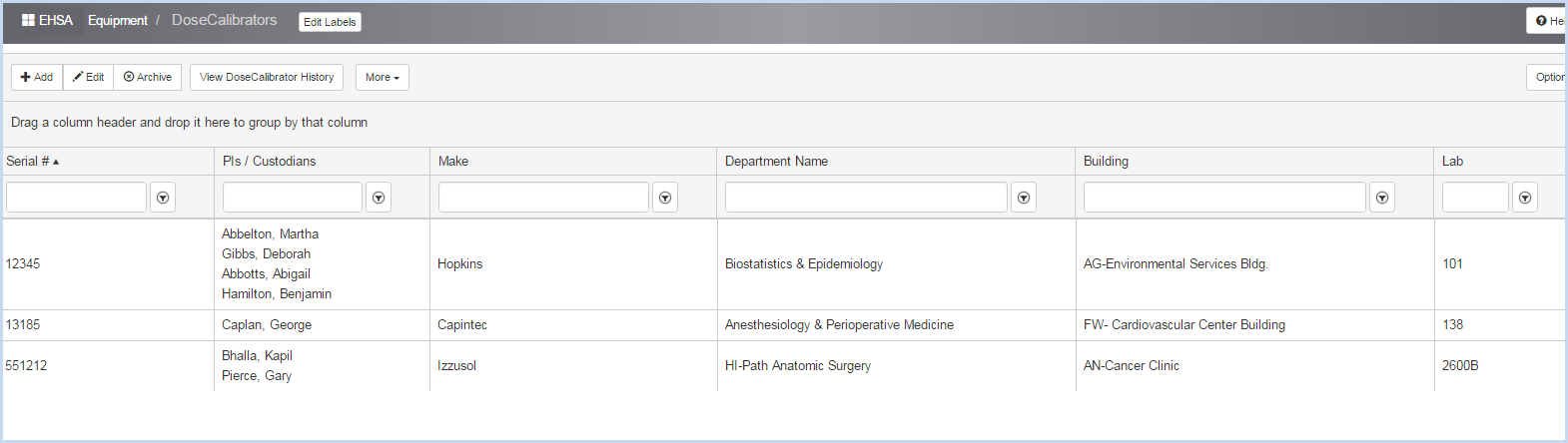

  1. This opens the Dose Calibrator Listing screen. Use filters and column sorting to view and find Dose Calibrators for editing.

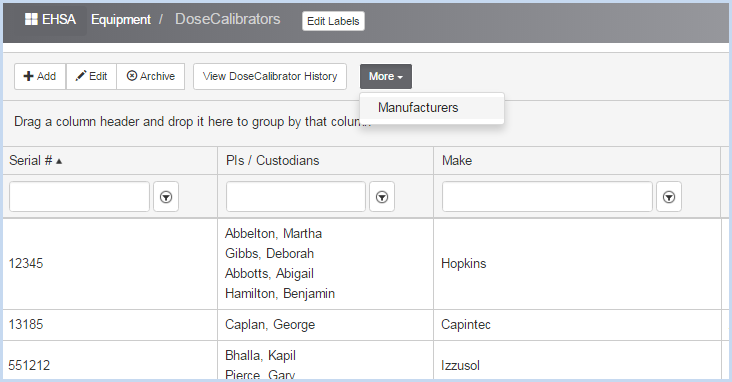

  1. Click the [More] dropdown to open the list of editable dropdown lists for Dose Calibrator details such as Manufacturers.

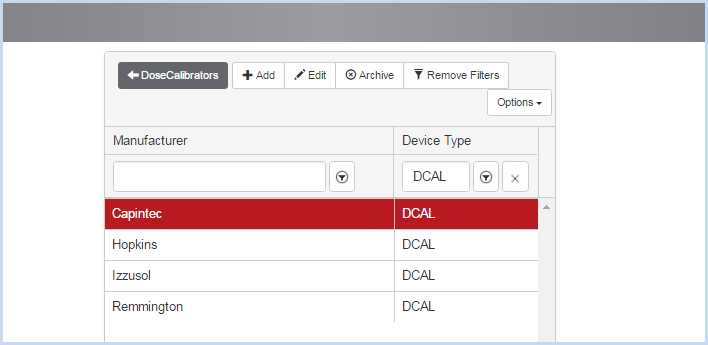

  1. Select a list for editing.  The list of Manufacturers is shown below.  Select [Add], [Edit], or [Archive] to add or change the list of Manufacturers.
  2. Click the [Dose Calibrators] button to return to the list of Dose Calibrators.

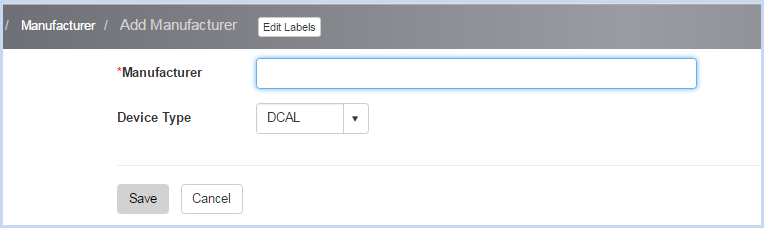

  1. Click [Add] to add a Manufacturer and enter information.  The Device Type is DCAL (Dose Calibrator). Click [Save] to save the entry, or [Cancel] to discard any edits and go back to the previous screen.

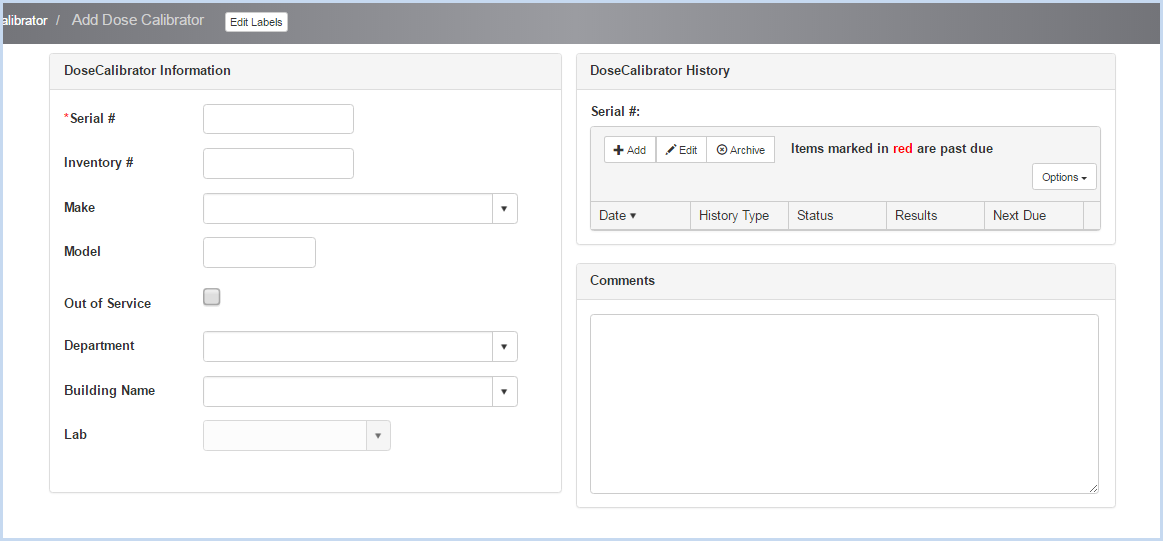

  1. Click [Add] to add a new Dose Calibrator, or [Edit] to modify any existing Dose Calibrator. This opens the Dose Calibrator entry/edit screen.



  1. Enter the Serial #. This field is required and is a unique identifier.
  2. Enter the Inventory #.
  3. Select the Make from the dropdown list.
  4. Enter the Model.
  5. Check "Out of Service" if unit is out of service.  When checked, date field will appear to enter the date Out of Service.
  6. Select Department, Building Name, and Lab from dropdown lists.


  1. Scroll down to view the Custodians Section shown below.


  1. Click the radio button for Search by PI/Permit or Search All Workers to search for and add a custodian.

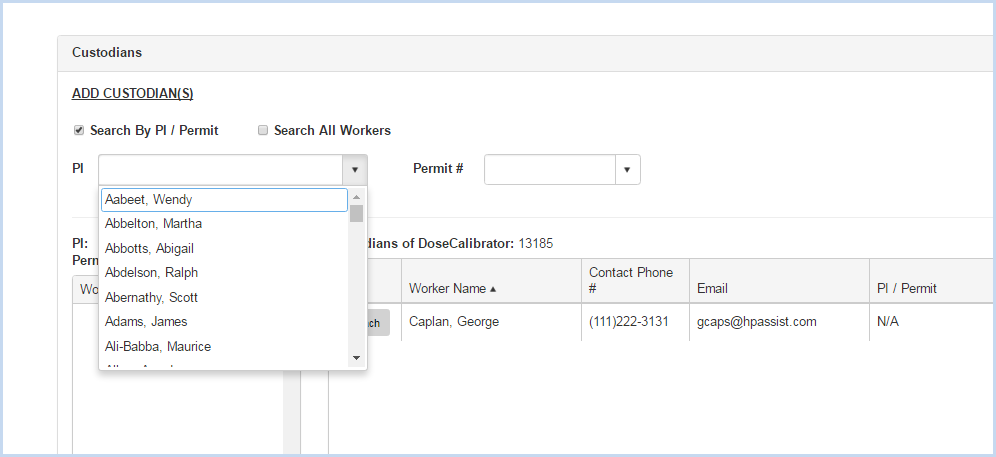

  2. Search by PI/Permit is shown below.  Select the PI from the dropdown list.
  3. After the PI is selected, choose one of the Permits attached to the PI from the Permit # dropdown.

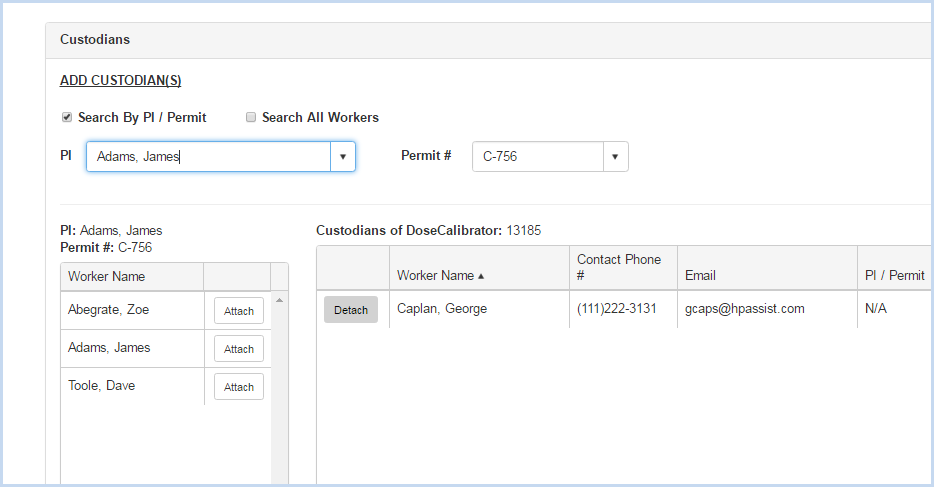

  1. After the PI and Permit are selected, the list of Workers attached to the permit will be available for attaching.
  2. Click on the [Attach] button to attach each contact needed.

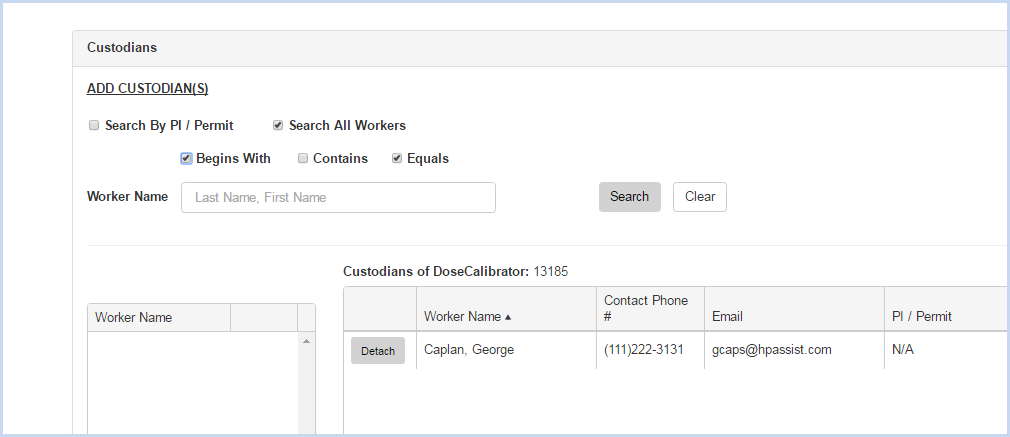

  1. When the Search All Workers option is chosen, enter filter criteria (Begins With, etc.) and click the [Search] button.



  1. Click [Save] to save the entries or [Cancel] to discard any entry/edit and return to the previous screen.
